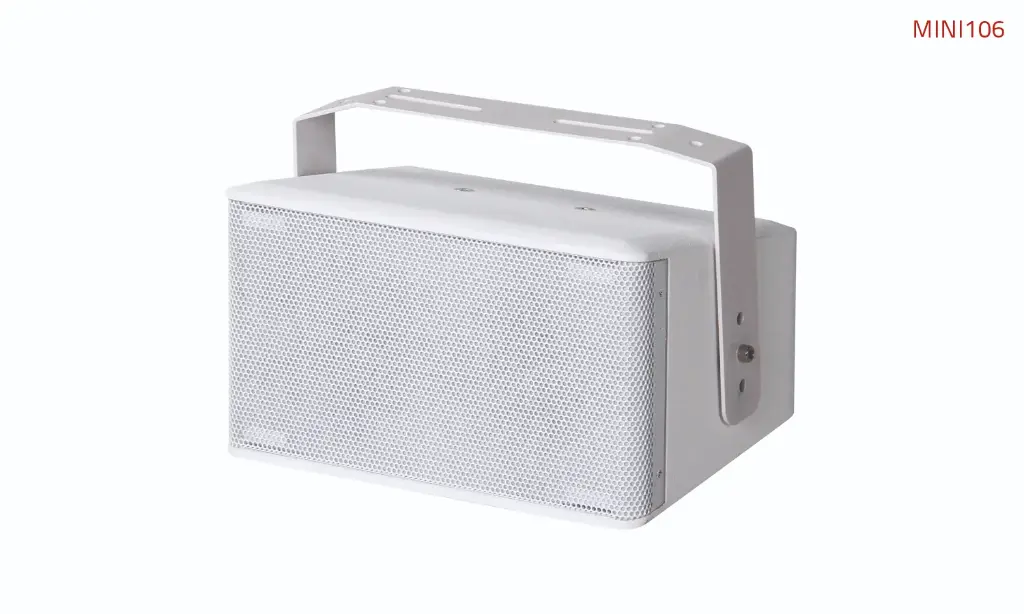

Mini 106W
6" 2-way Full Range, White, 80w RMS/16 Ohm, incl Multi-angle bracket, Single piece, sold per 2
Documents
The MINI 106W is a two-way loudspeaker system with one 6″ woofer and 1″ exit compression driver coupled to a round 140°×140°wide dispersion horn. Supplied with a Multi-angle rigging bracket.
PRODUCTINFO
6" 2-way Full Range, White, 80w RMS/16 Ohm, incl Multi-angle bracket, Single piece, sold per 2
SPECIFICATIONS
| Brand | ProDJuser |
| Audio Inputs | Euroblock LSP |
| Power handling capacity (RMS) | 80W |
| Driver Size HF | 1" |
| Driver Size LF | 6" |
| Frequency Response From (+/- 3dB) | 65Hz |
| Frequency Response To (+/- 3dB) | 18000Hz |
| HiZ/LoZ/Impedance | 16 Ohm |
| Color | White |
| Maximum SPL @ 1 meter | 110dB |
| Dispersion horizontal | 140 |
| Dispersion vertical | 140 |
| Height (mm) | 202mm |
| Width (mm) | 340mm |
| Depth (mm) | 233mm |
| Weight (net, kg) | 14kg |
