Mini 105W
5" 2-way Full Range, White, 80w RMS/16 Ohm, incl Multi-angle bracket, Single piece, sold per 2
Documents
The MINI 105W is a two‑way loudspeaker system with one 5″ woofer and 1″ exit compression driver coupled to a round 140°×140°wide dispersion horn. Supplied with a Multi‑angle rigging bracket.
PRODUCTINFO
5" 2-way Full Range, White, 80w RMS/16 Ohm, incl Multi-angle bracket, Single piece, sold per 2
SPECIFICATIONS
| Brand | ProDJuser |
| Audio Inputs | Euroblock LSP |
| Power handling capacity (RMS) | 80W |
| Driver Size HF | 1" |
| Driver Size LF | 5" |
| Frequency Response From (+/- 3dB) | 75Hz |
| Frequency Response To (+/- 3dB) | 18000Hz |
| HiZ/LoZ/Impedance | 16 Ohm |
| Color | White |
| Maximum SPL @ 1 meter | 108dB |
| Dispersion horizontal | 140 |
| Dispersion vertical | 140 |

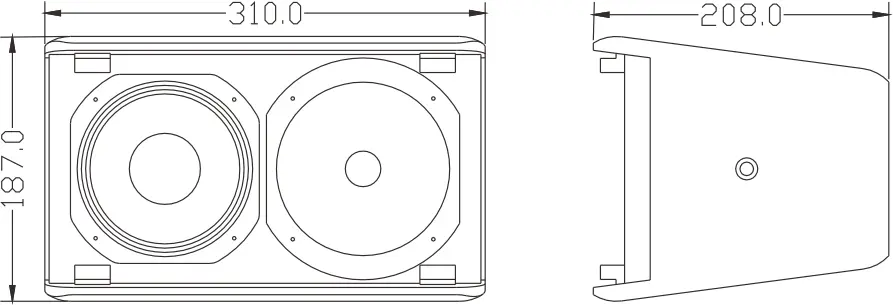

| Height (mm) | 187mm |
| Width (mm) | 310mm |
| Depth (mm) | 208mm |
| Weight (net, kg) | 12.1kg |
