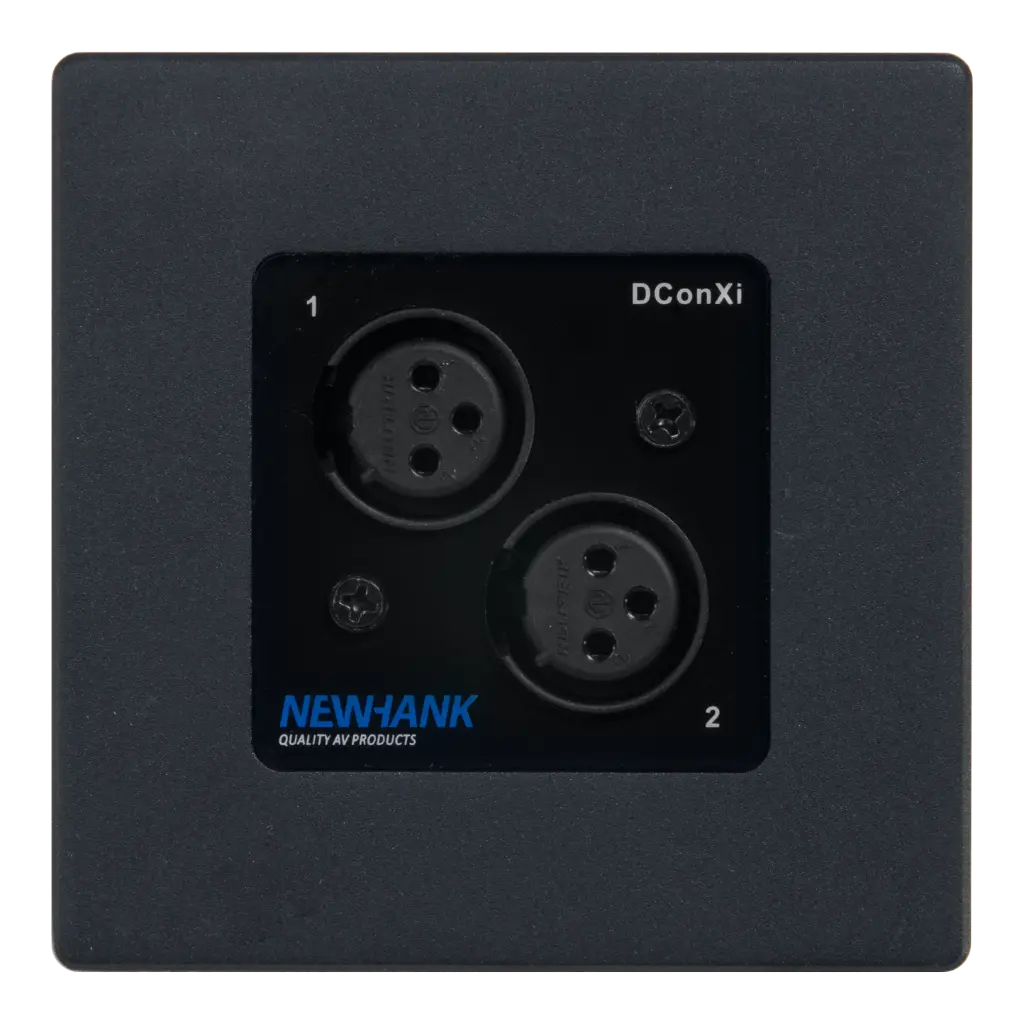

DConXi
EU wall box compatible Dante 2x XLR input panel, with mic gain, 48v PP & API
The DCon series features three advanced products, all designed to fit standard European in-wall junction boxes with a depth of 50mm and compatible with widely used EU cover frames, making them perfect for seamless integration into commercial, educational, and entertainment AV environments.
This two-channel XLR input panel converts analog audio to Dante, the industry-standard audio-over-IP protocol. Each input is equipped with an adjustable preamp that offers up to 42dB of amplification plus -100 to +27dB digital gain, along with switchable Phantom Power for handling microphones and other audio sources with precision. DConXi also provides an API for integration with third-party control systems, making it an ideal choice for customized installations.
PRODUCTINFO
EU wall box compatible Dante 2x XLR input panel, with mic gain, 48v PP & API
SPECIFICATIONS
| Brand | NewHank |
| Number of channels | 2 |
| Audio Inputs | XLR Balanced |
| Audio Outputs | Dante |
| Features | Converter |
| Other connections | Ethernet + PoE (RJ45) |
| AVoIP Protocol | AES67, Dante |
| Dante Sample Rate | 48kHz |
| ADC Bit Depth | 24-Bit |
| Height (mm) | 90mm |
| Width (mm) | 90mm |
| Depth (mm) | 54mm |
| Weight (net, kg) | 0.25kg |
