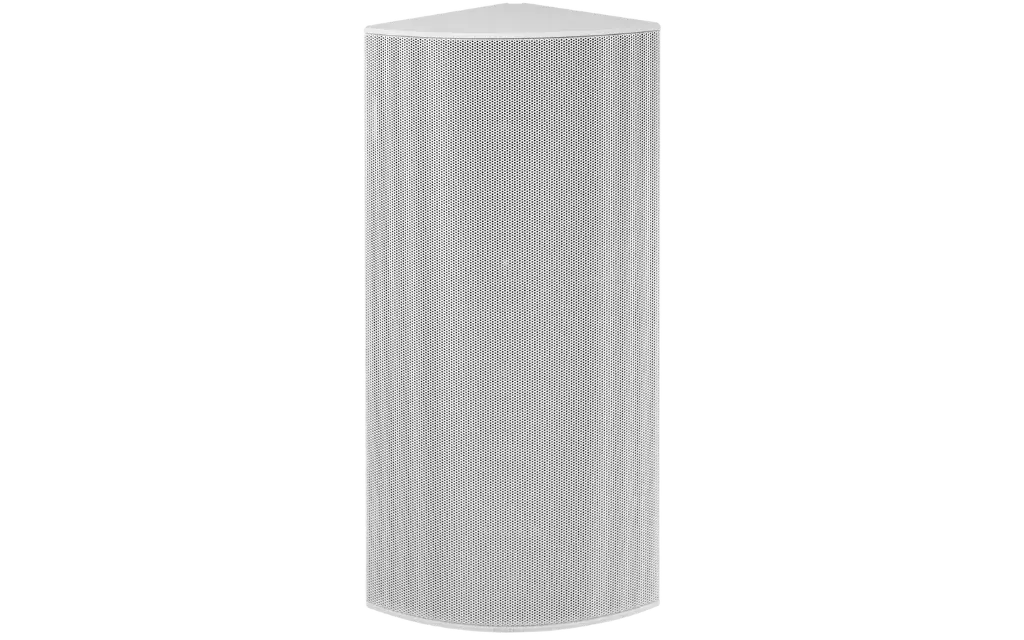

Ci5-V White
5.25" passive, 2-way, full-range loudspeaker w/ switchable high-impedance mode, black
Documents

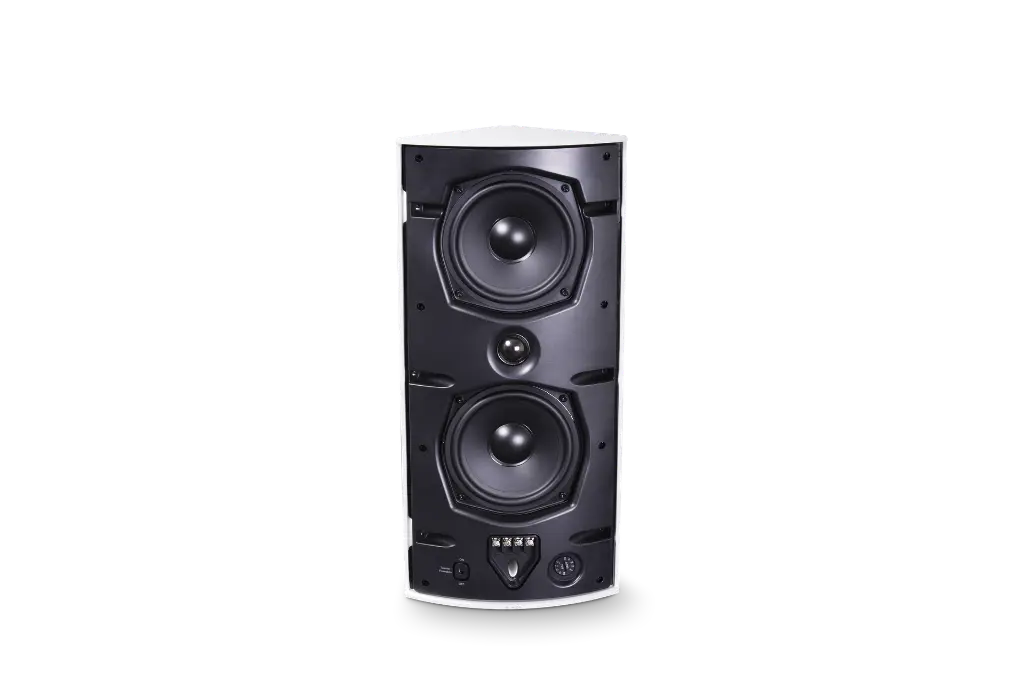

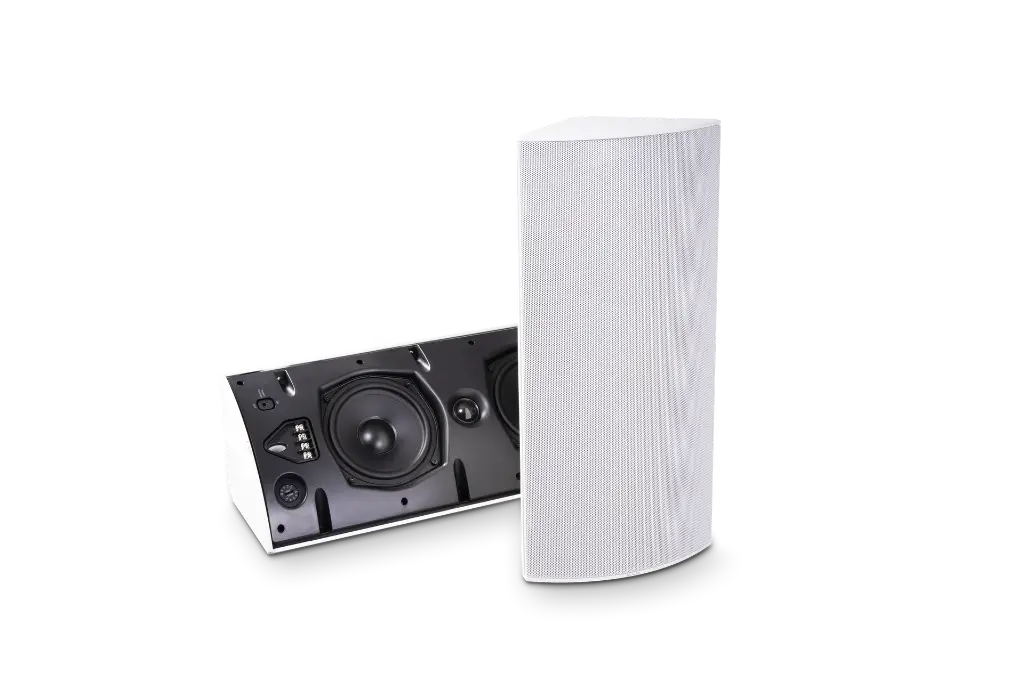

Ci5-V is a very versatile and compact 2-way full-range loudspeaker with strong output and solid bass performance.
With a wide and uniform dispersion, full coverage can be achieved by
installing relatively few loudspeakers, which makes the Ci5-V especially
suited for indoor and outdoor commercial installations.
The patented
triangular design and sliders ensure fast and easy installation, flush
in corners or onto walls and ceilings without brackets.
Cabinets can be coupled together to increase coverage to 180 or 270 degrees.
The cable terminal is hidden, making the cable connection invisible in both vertical and horizontal applications.
The
tweeter features a switchable protection circuit for added safety, and
the Ci5-V model can be run in either 8 ohm or 70/100 volt. In
high-impedance mode, tap settings for 3.5-7.5-15 or 30 watt output are
conveniently located on the front baffle.
Ci5-V is the perfect elegant loudspeaker solution for commercial
installations in entertainment venues, shopping malls, hotels and
meeting rooms.
For enhanced bass performance, the Ci5-V can be teamed indoors with our C8S and C12S subwoofers.
PRODUCTINFO
5.25" passive, 2-way, full-range loudspeaker w/ switchable high-impedance mode, black
SPECIFICATIONS
| Brand | Blaze, Sonance Professional |
| Audio Inputs | Terminal LSP |
| Power handling capacity (RMS) | 100W |
| Driver Size HF | 1" |
| Driver Size LF | 5.25" |
| Frequency Response From (+/- 3dB) | 65Hz |
| Frequency Response To (+/- 3dB) | 18000Hz |
| Dispersion horizontal | 100 |
| Dispersion vertical | 100 |
| HiZ/LoZ/Impedance | 70V, 100V, 8 Ohm |
| IP Rating | IP65: Dust-tight and safe from water jets. |
| Color | White |
| Maximum SPL @ 1 meter | 113dB |
| Width (mm) | 209,1mm |
| Height (mm) | 450,1mm |
| Depth (mm) | 150,1mm |
| Weight (net, kg) | 2.85kg |
