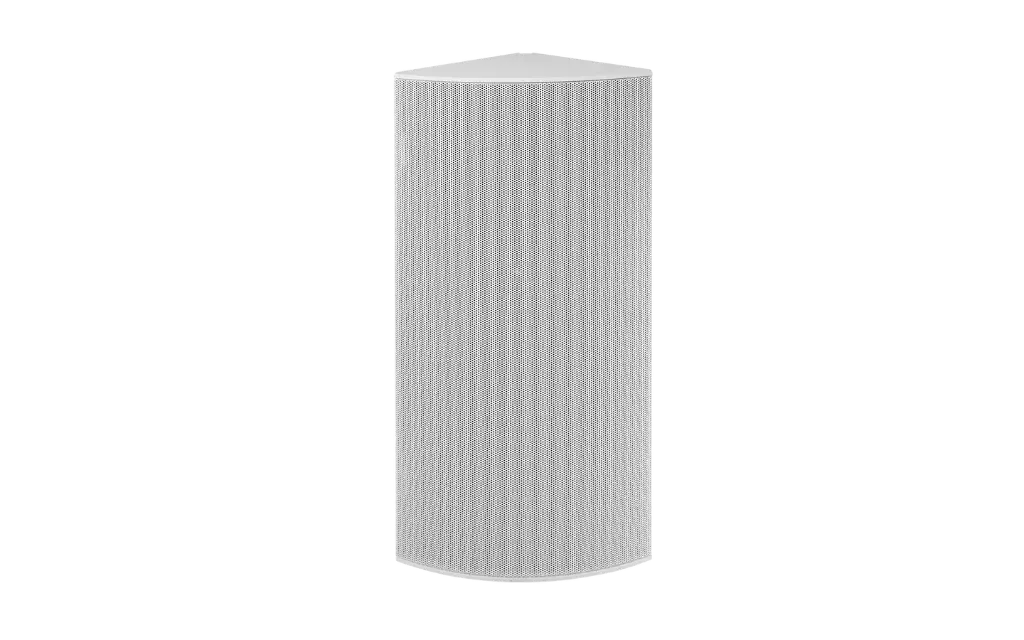

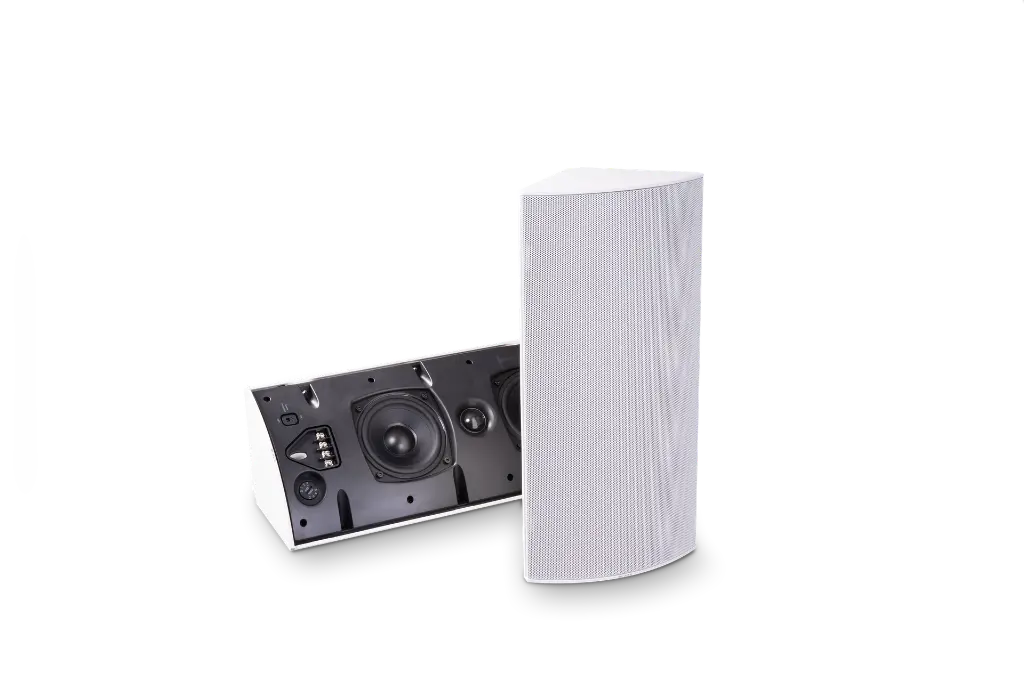

Ci4-V White
4" passive, 2-way, full-range loudspeaker w/ switchable high-impedance mode, white
Ci4-V is similar to the Ci4, but with a switchable high-impedance mode.
In high-impedance mode, the Ci4-V has tap settings for 3.5-7.5 or 15
watt output conveniently located on the front baffle.
Ci4-V is a feature-packed, compact, 2-way, full-range loudspeaker with
medium output. With a wide and uniform dispersion, full coverage can be
achieved by installing relatively few loudspeakers, which makes the
Ci4-V especially suited for indoor and outdoor commercial installations.
It features an advanced passive woofer design, which enables the compact cabinet to deliver full-range bass.
The
patented triangular cabinet features integrated mounting points,
allowing it to be flush-mounted in corners or onto walls and ceilings
without the need for brackets.
Additionally, with our new slider system, installation becomes a
flexible and easy one-person task. Cabinets can be coupled together to
increase coverage to 180 or 270 degrees.
The cable connection is invisible in both vertical and horizontal
applications, and the tweeter features a switchable protection circuit
for added safety.
Ci4-V is the perfect aesthetic loudspeaker solution
for background sound in commercial installations such as cafes, hotels,
and retail shops.
For enhanced bass performance, the Ci4-V can be teamed indoors with our
C8S and C12S subwoofers.
PRODUCTINFO
4" passive, 2-way, full-range loudspeaker w/ switchable high-impedance mode, white
SPECIFICATIONS
| Brand | Blaze, Sonance Professional |
| Audio Inputs | Terminal LSP |
| Power handling capacity (RMS) | 60W |
| Driver Size HF | 1" |
| Driver Size LF | 4" |
| Frequency Response From (+/- 3dB) | 70Hz |
| Frequency Response To (+/- 3dB) | 18000Hz |
| Dispersion horizontal | 100 |
| Dispersion vertical | 100 |
| HiZ/LoZ/Impedance | 70V, 100V, 8 Ohm |
| IP Rating | IP65: Dust-tight and safe from water jets. |
| Color | White |
| Maximum SPL @ 1 meter | 111dB |
| Width (mm) | 190mm |
| Height (mm) | 400,1mm |
| Depth (mm) | 145,1mm |
| Weight (net, kg) | 2.7kg |
