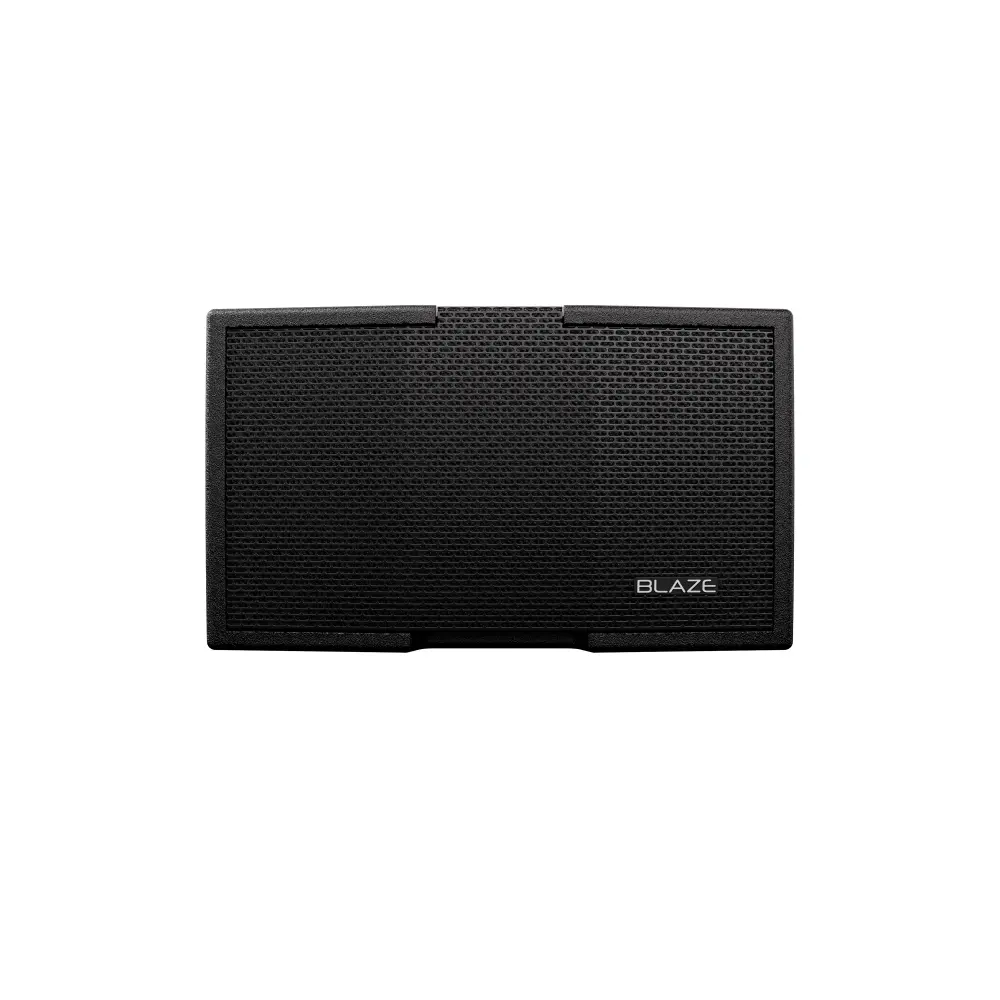

CBL523 - Black
Passive, 2-way Constant Beamwidth Loudspeaker, black
Documents
The ultra-compact and innovatively designed CBL523 is a perfect fit where on-wall distributed audio is needed.
The 20.5 x 35 cm (8" x 14") enclosure features two 5" low-frequency
drivers complemented by a vertical constant directivity array of three
2" high-frequency drivers, delivering 119 dB of maximum SPL in a focused
160 Degree (horizontal) x 55 Degree* (vertical) pattern.
The CBL523
has versatile mounting options with custom-designed hardware, as well as
the ability to stack and suspend two units together for increased SPL
and an increased vertical pattern.
PRODUCTINFO
Passive, 2-way Constant Beamwidth Loudspeaker, black
SPECIFICATIONS
| Brand | Blaze, Sonance Professional |
| Audio Inputs | Speakon LSP |
| Power handling capacity (RMS) | 160W |
| Driver Size HF | 2" |
| Driver Size LF | 5" |
| Frequency Response From (+/- 3dB) | 71Hz |
| Frequency Response To (+/- 3dB) | 18000Hz |
| Dispersion horizontal | 160 |
| Dispersion vertical | 55 |
| HiZ/LoZ/Impedance | 4 Ohm |
| Color | Black |
| Maximum SPL @ 1 meter | 119dB |
| Width (mm) | 350mm |
| Height (mm) | 205,3mm |
| Depth (mm) | 226,1mm |
| Weight (net, kg) | 6.8kg |
