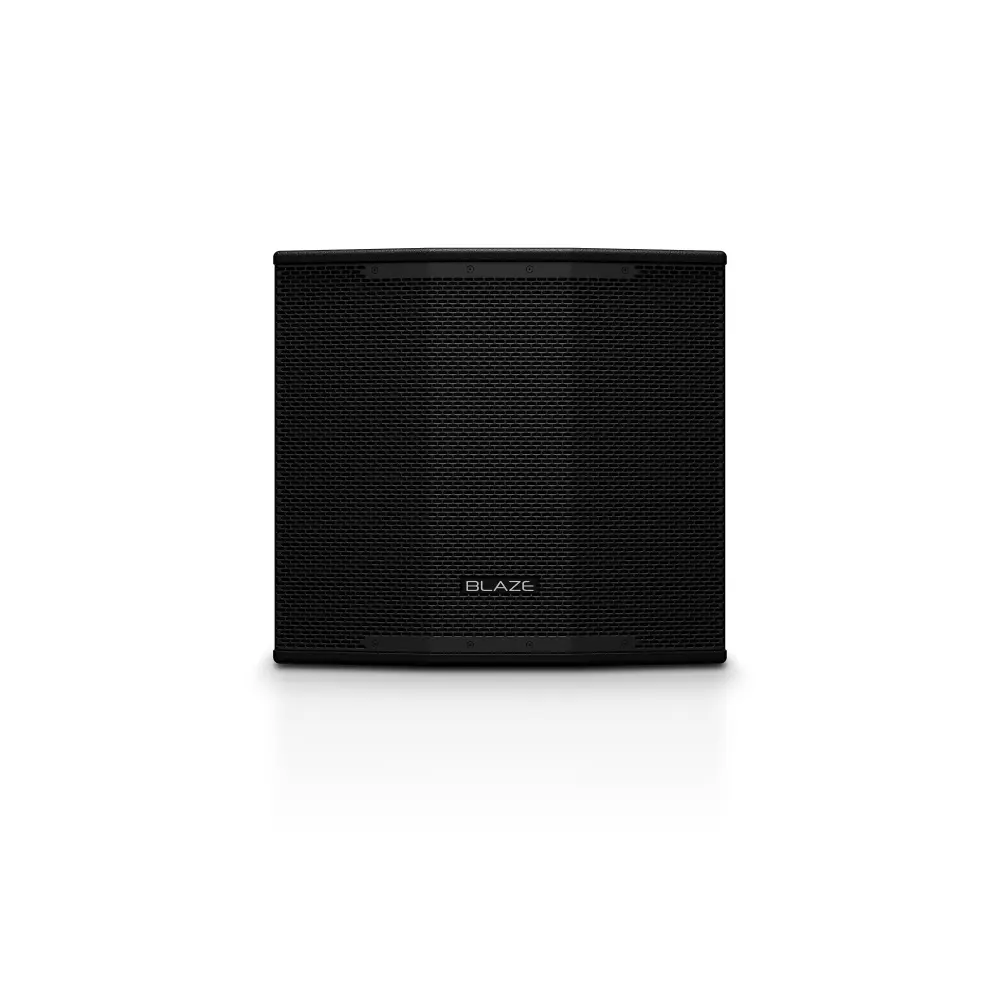

The high-power passive subwoofer, BL18S, completes the CBL series from
Blaze Audio and is specifically crafted to integrate seamlessly with the
CBL523 and CBL528 constant beamwidth loudspeakers, providing a complete
full-range audio system that enhances sound quality and performance for
small to medium-sized venues that require scalable and versatile
low-frequency solutions.
Designed primarily for free-standing
installations, the BL18S features an 18-inch bass driver housed in a
reflex-loaded enclosure, delivering low-frequency bandwidth down to 31
Hz at -10 dB, with maximum sound pressure levels reaching 136 dB at 1 m.
Multiple BL18S subwoofers can be installed in stacked pairs and
configured via amplifier presets to deliver either omnidirectional or
cardioid directivity characteristics, ensuring exceptional sound
distribution.
PRODUCTINFO
18" high-power passive subwoofer
SPECIFICATIONS
| Brand | Blaze, Sonance Professional |
| Audio Inputs | Speakon LSP |
| Power handling capacity (RMS) | 1200W |
| Driver Size LF | 18" |
| Frequency Response From (+/- 3dB) | 36Hz |
| Frequency Response To (+/- 3dB) | 150Hz |
| HiZ/LoZ/Impedance | 8 Ohm |
| Color | Black |
| Maximum SPL @ 1 meter | 136dB |
| Width (mm) | 622,3mm |
| Depth (mm) | 762mm |
| Height (mm) | 571,5mm |
| Weight (net, kg) | 59.65kg |
